This content comes from what is worth buying @ SMZDM.COM | soup of letters home life

It offers a 15 paragraph 5 batteries of horizontal comparison article, so that everyone in the purchase of the battery when the better choice.

Friendly reminder: not interested in the content of the test results please just want to see the venue and evaluation Part IV!

Part I: cell selection

The No. 5 Hengping battery, battery of a few selected orientation, first, I do some batteries, and second, we are more concerned about the battery, and the third is usually more convenient to buy all the batteries.

1, the resistance when the lithium-iron battery. 2, alkaline batteries Ikea. 3, millet alkaline batteries. 4, Nanfu alkaline batteries. 5, Duracell alkaline batteries. 6, Matsushita carbon batteries. 7, Panasonic Alkaline batteries. 8, super alkaline batteries. 9, Deer alkaline battery. 10, Deer green energy alkaline batteries. 11, Swan carbon batteries. 12, eneloop Philharmonic & P NiMH rechargeable batteries. 13, enelong special times NiMH rechargeable batteries. 14, PISEN NiMH rechargeable batteries. 15, FLG NiMH rechargeable batteries.

1, when the lithium-iron battery resistance, Representative of lithium-iron battery, the rise in recent years, good feeling, high price of 5 yuan single, but several times in the alkaline battery power, plus no leakage and ultra-low self-discharge characteristics, but also as a home good choice (my remote control are put on it the battery). There is a large current discharge characteristics and low temperature discharge, making it capable of extreme need electricity. Buggies Players should no stranger to this battery. FIG resistance lower section 8 is set, the battery pack and comes pry flashlight.

Each energy-saving filled lake has cut rub strip that allows us to run out of battery did not run out to be a mark, such as cut in half, it means there are some power. For example, all cut clean, represents the power goes off, you can go to battery collection points lost.

Positive and negative details:

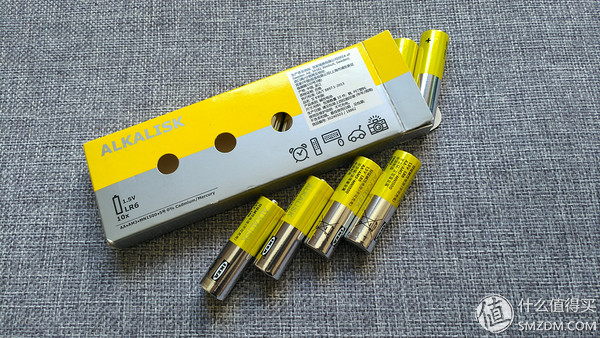

2, alkaline batteries IkeaIKEA this alkaline batteries in my cell No. 7 last year Hengping post where we talk more, is often listed as one of IKEA will be enough product, so this time I came in it are also listed for comparison. Its Chinese name “Aika Aires” batteries, a mouthful, we call it the IKEA battery, but only 10 knots installed at IKEA, a festival must buy 10, but fortunately the price of 9.9 yuan, very cheap.

Positive and negative details:

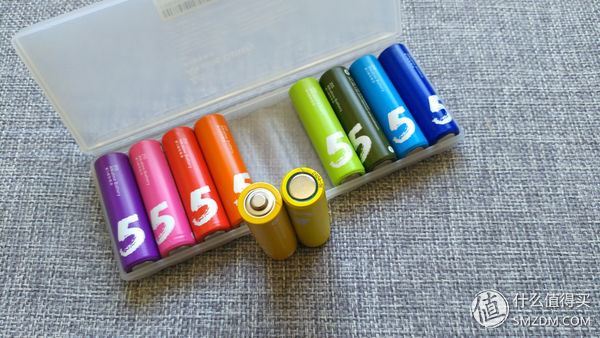

3, millet alkaline batteriesAccurate to say that “purple No. 5 batteries,” purple millet ecological chain manufacturers, I still like to call millet battery. Like Ikea battery, but also we are more concerned about the battery. Section 10 installed, there is a very intimate battery box, the price is not expensive, section 10 package store last saw 9.9 yuan, JD I bought the price is 12.9 yuan, as I write this article, I found the price changed to 9.9 yuan, it seems JD still has the price floating.

Positive and negative details:

4, Nanfu alkaline batteriesNanfu alkaline batteries shaped ring we are most familiar, everyone should go to the supermarket to buy the election of the first selected cell, after all, the overwhelming television advertising, toys, wall clock run out with. Nanfu battery time like this occurs, resulting in a carbon-zinc batteries battery so that the position of the mainstream market, we look forward to please this old alkaline batteries in the performance evaluation of.

Positive and negative details:

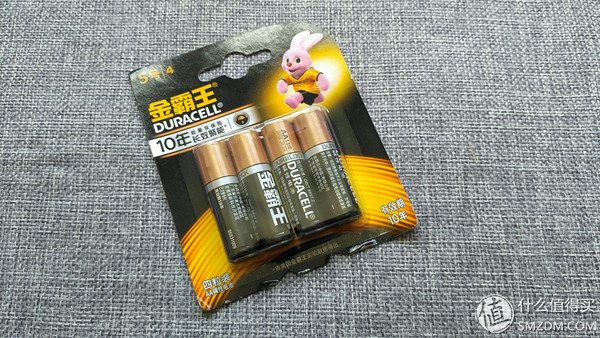

5, Duracell alkaline batteriesExposure under age, I was a kid playing the Audi four-wheel drive that would be, this battery began to appear on the market (around Wuxi, 95 years), the price is quite high, 7-8 yuan per session, then count the income and price, this price is already Guards. Now with the popularity of alkaline batteries, Duracell this park to the brand, they can only lower prices, but the current price in alkaline batteries in or slightly more expensive.

Positive and negative details:

6, carbon batteries PanasonicPanasonic brand we are not familiar, island brand, originally wanted to buy Toshiba carbon-zinc, the result is a buy Jingdong section 12, in order to cut costs, I chose the Panasonic Carbon Day 4 installed, you can save some costs, section 4 4 yuan , in 1 yuan / section.

Positive and negative details:

7, Panasonic Alkaline batteriesPanasonic alkaline batteries, in some Japanese products can often be seen in the standard battery. Valid for 10 years, three of technological innovation, promote the triple coat protection, battery card seems quite powerful. 2 batteries 6.5 yuan, in alkaline batteries in the considered expensive.

Authentication card encoding, two alkaline batteries also get these two. By the time you see the performance, there is not as advertised.

Positive and negative details:

8, super alkaline batteriesSpeedmaster GP gave me the impression that a decade ago, most of the rechargeable battery, and is common in some alcohol and tobacco shop, a small supermarket. As alkaline batteries, we may not be much of their cognition. For reasons of popularity of the brand, add to the mix were the competitions.

Positive and negative details:

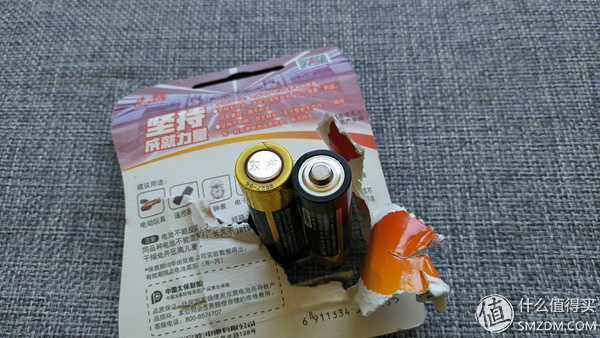

9, Deer alkaline batteriesIn last year’s No. 7 battery competitions, Deer alkaline batteries to get good results, even more than Nanfu, and the price is lower, so this choice is made.

Positive and negative details:

10, Deer green energy alkaline batteries, The buy rating on the battery JD time, the Rockets have also seen this green energy alkaline batteries, ask customer service, said this green energy is stronger than conventional Deer alkaline, and therefore also the buy, join competitions.

Contrast Deer Deer green energy alkaline batteries and alkaline batteries, packaging, in addition to the difference between red and green, the other is not very different.

Positive and negative details:

11, carbon batteries SwanOne of the most common batteries 20 years ago, and I remember there was a white elephant, I saw under the swan battery manufacturers, Shanghai White Elephant Swan Battery Co., Ltd., is a must, and is a veteran of carbon-zinc batteries represent , must be selected for comparison.

Positive and negative details:

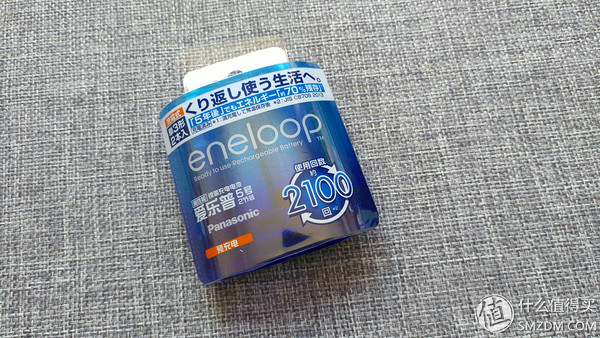

12, eneloop Philharmonic NiMH rechargeable batteries P, Commonly known as “love my wife” batteries, reputation of the best NiMH rechargeable batteries, right, the price is quite high, the probability of battery No. 7 last year Hengping we talk highest, hottest heat of battery, so this time I also spend money, buy in Jingdong on, 65 yuan section 2 installed.

Positive and negative details:

eneloop blue print as well as glossy effect, color value is very high.

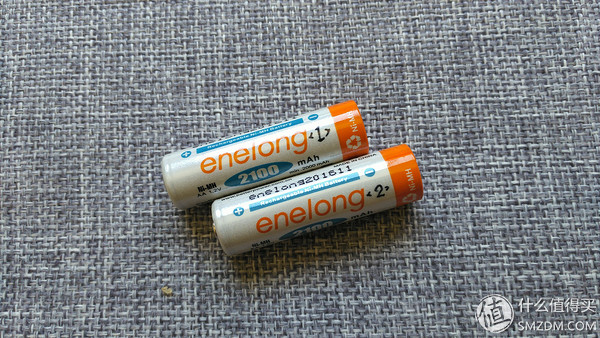

13, enelong special times NiMH rechargeable batteries, Commonly known as the “love of her husband” batteries, a little homemade “love my wife,” meaning the battery, regarded as one of the battery relatively high profile forum of battery, but also a lot of fakes, these sections also buy in Taobao, 6.8 yuan / section ( excluding freight). Purchase in early 2017.

Positive and negative details:

14, NiMH rechargeable battery product wins, Battery product wins in the domestic consumer the impression is very familiar with, especially before the cell phone batteries, camera batteries, are the only choice. This section 2 is I bought in early 2015, it has been used for more than 2 years, for evaluation may have some impact on performance, so we need to treat the result of rational treatment.

Positive and negative details:

15, FLG NiMH rechargeable batteriesIs Jingdong purchase in early 2015, it has been used for more than 2 years, for evaluation may have some impact on performance, so we need to treat the result of a rational treatment. At that time the main time of purchase feel cheap, 59 yuan 8 knots, combined to 7 yuan a, cheap regarded as self-employed in the JD battery in anyway at hand, but also brought together under comparison.

Positive and negative details:

Part II: a vision test and process aborted

(Tips: Miss this section can be ignored, because in the end this experiment aborted by the method Experiment 2, or write it down as a failed experiment record)

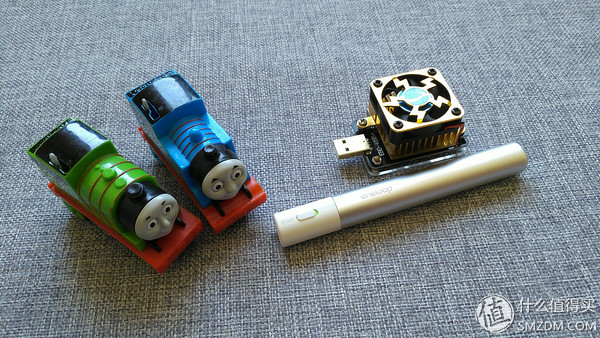

Last year was a Thomas train track running around, be with life appliances to the measurement, the value of some very wise friends, made a little lack of accuracy of the experiment, because the electric Thomas will run with frequency of use the slower, it does exist, it may cause the battery back comparison test “lose” is actually from last year that will review the experimental process point of view, such an error can be ignored. But this year I think, still have to improve a little bit evaluation methods to improve the accuracy of some. Because the hand is used to measure the charge on a regular phone charging Po and the EBD-USB + instrument can accurately as load (electric appliances is analog), is measured and recorded as the instrumentation data such as voltage and current, but the instrument is a USB Interface, so I borrowed a “medieval artifacts” to colleagues.

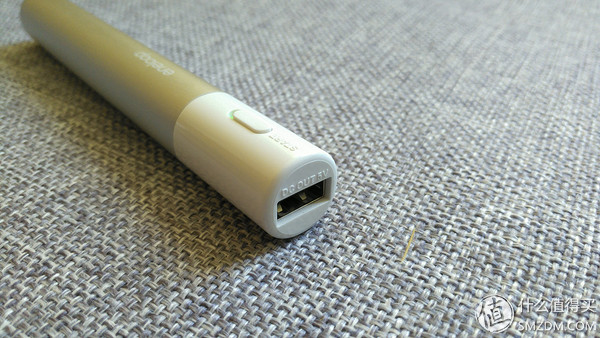

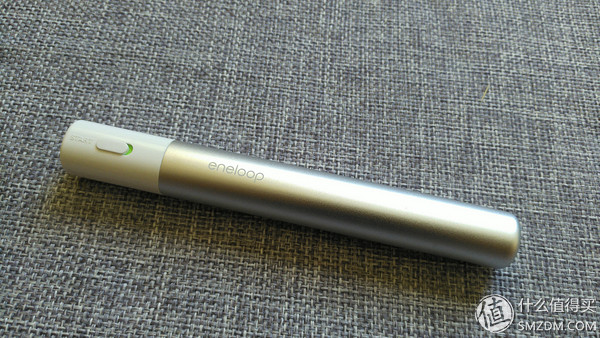

The “Middle artifact” is a cell in the early years eneloop launched mobile battery power, can be fitted or 2 AA batteries section 2 to use rechargeable batteries as an emergency mobile power. In the previous era when the phone is only over one thousand mA, and Section 2 dry electrical power or how much some help on the phone, the current era of mobile phone battery fast charge and various protocols 3000, 4000 when hundreds of milliamps, this thing It can only be a nostalgic idea thought.

Dry electric eneloop mobile power output 5V / 0.5A.

When used in mobile power charged in the battery rod, connected EBD-USB + form, and then used to connect the computer monitor.

By the way, this charger is used liitoKala the lii-500, using a charge efficiency of 500mAh, love her husband, product wins and Flying Lion are more than six months time, the new eneloop batteries were 4 after the test charge-discharge cycles, all the batteries are completely discharged before, once fully charged.

Setting throughout the experiments: a constant current of 0.5A output termination voltage 4V.

1, resistance of the battery monitoring results below.

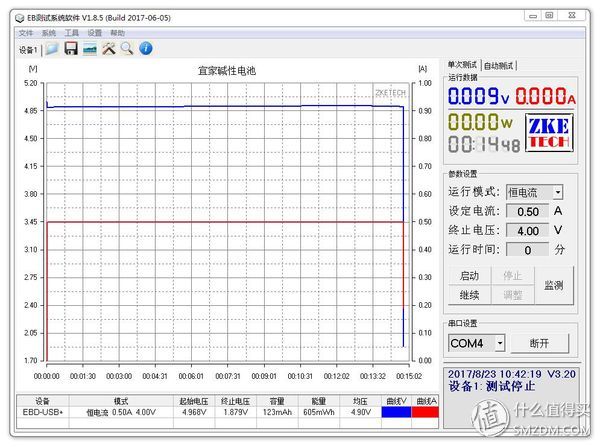

2, the battery monitoring results below Ikea FIG.

3, millet battery monitoring results below.

4, the results of the monitoring cell is as follows nanfu FIG.

5, a rechargeable battery product wins the monitoring results as shown below.

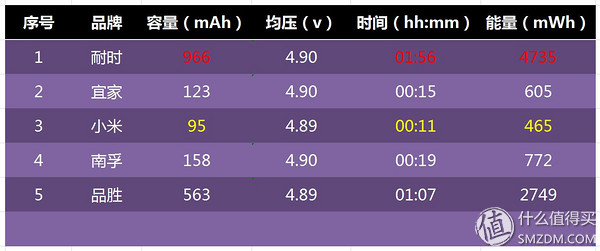

Finally, I summarized into the following table, the data can be seen when compared to the resistant millet from the release of electricity has reached more than ten times, more than six times Nanfu, ahead of alkaline batteries, a rechargeable battery product wins The results also looks better, but asRational analysis, think of last year’s No. 7 battery evaluation, when the resistance is generally 2-3 times the energy product wins, less so 7-10 times the gap that may ariseTherefore thinking, or mobile charging wand pot, after all, this is a booster circuit, the voltage rises to 2.4V-3V 5V voltage is then output,Requirements of the battery is relatively high, As anti-lithium-iron battery, at such a high requirement, or to maintain a good performance, but the alkaline battery monitoring results relatively ugly, NiMH rechargeable battery voltage is not enough, Minato current, good results reached. Therefore, from this experiment failed mobile power rod, although the battery on the detection of a failure, the output power from the battery, the output current is large angle to be seen. Plainly, the alkaline battery is no way to maintain the power output mobile power rod, a strong so no.

Part III: experimental data and the results of two successful

Experiments to detect a wanted power seems to die, after the degree of your mother and find some batteries enthusiasts help, they suggested that I single-battery detection, and do not boost tests better, through inspiration, I use toys for children at home a battery case made remote, the wire leads from a single battery slot two, got OTG line (the early years mobile phone micro-channel connected to a mouse to play the game planes …) transformed into the female, by a battery, directly EBD-USB + connected load monitoring. In such a way to measure battery capacity.

Upon completion of the transformation:

After all, is an experiment, certainly there is an error, the cause of the error under listed here:

1, alligator clips, various wire solder joint, the length of wire would have some influence on the results.

2, USB OTG cable USB male and female EBD-USB + tables there is a certain resistance, the results would have been affected.

3, although there are some errors, but overall Hengping, that was very valuable reference.

Experimental setting: the cell are set to output a constant current 0.3A, voltage falls below 0.8V abort detection,0.8V voltageSubstantially Section 2 of such cells into the shaving, even run, then 1-2 times, not what will make the strength. (In fact, a rechargeable battery is generally set to a voltage 0.9V suspension, taking into account the loss of the line, or side is set to 0.8V, so that the result may be for, more preferably a rechargeable battery accounting)

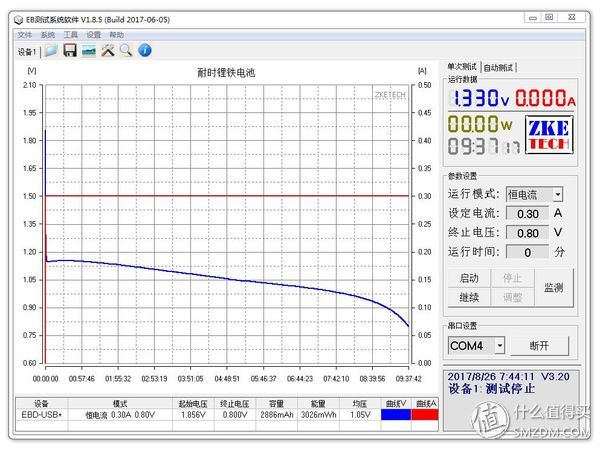

1, when the lithium-iron battery resistance

2, alkaline batteries Ikea

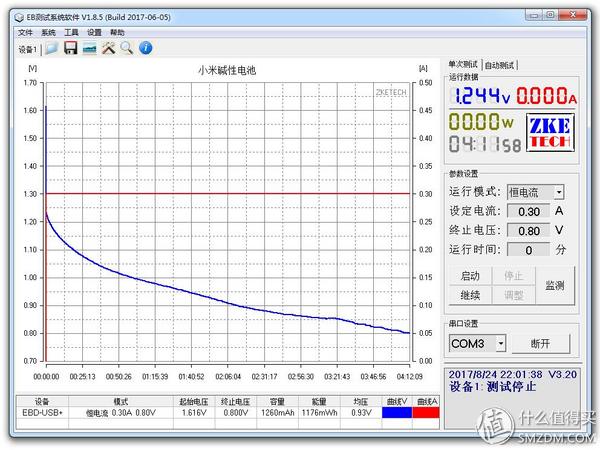

3, millet alkaline batteries

4, Nanfu alkaline batteries

5, Duracell alkaline batteries

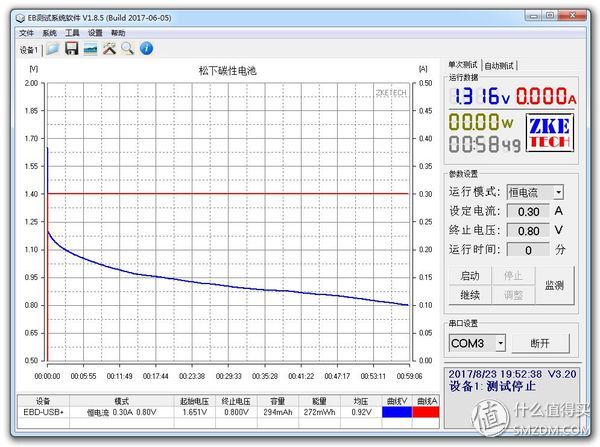

6, carbon batteries Panasonic

7, Panasonic Alkaline batteries

8, super alkaline batteries

9, Deer alkaline batteries

10, Deer green energy alkaline batteries

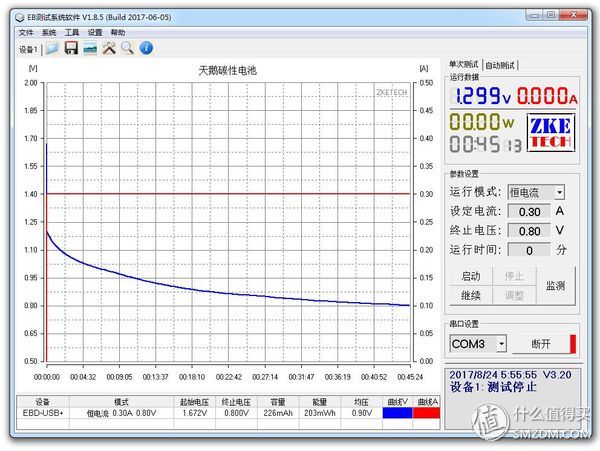

11, carbon batteries Swan

12, eneloop Philharmonic NiMH rechargeable batteries P

13, enelong special times NiMH rechargeable batteries

14, NiMH rechargeable battery product wins

15, FLG NiMH rechargeable batteries

Part IV: 15 of the battery Hengping results (the most important part)

The following figure shows the experimental data of the battery discharge 15 of my summary, organized into form. (Reference price in the recent JD purchase price, millet battery I bought 12.9 yuan, I see now became 9.9 yuan, and the store is 9.9 yuan, 9.9 yuan Come follow it, special times, product wins, these batteries are flying lion bought some time, fill in accordance with the recent price), you can see by the summary table:

1, when the lithium-iron battery resistance, are far ahead in terms of parameters of the discharge pressure are high, the energy released is about 2-3 times that of alkaline batteries, carbon is ten times of the battery.

Old alkaline battery discharge volume 2, alkaline batteries, the battery with millet and IKEA Nanfu, Duracell, Panasonic, super, Deer, etc. on a level hierarchy, but the price is more close to the people, belong to this review cost high alkaline battery.

4, carbon is much less than the amount of battery discharge the other battery.

5, four NiMH rechargeable battery performance is acceptable, the experiment is slightly weaker than the other three products win (but also use more than two years, the presence of aging), eneloop battery does not have a high price and in a single discharge color performance, overall nickel hydrogen rechargeable batteries, and in the case of using a properly managed, with a high price.

FIG 15 is a lower section of the battery charge and discharge capacity of the histogram, the histogram may be more intuitive. When the lead is not resistant to lithium iron opponent, NiMH rechargeable battery discharging the second tier, a third tier alkaline batteries, two C batteries bottom.

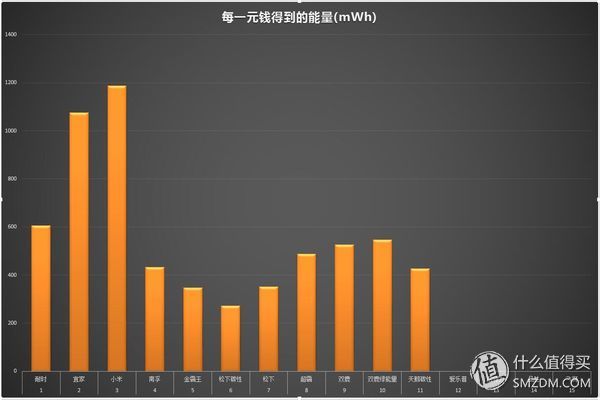

The figure below is conversion into the energy column chart released in the experiment, which can be referred to in the cost performance, and the four nickel-hydrogen charging batteries are not added, after all, can be recycled. In the rest of the 11 batteries, Xiaomi first, it is advisable to work, and the third is third.

Part 5: Summary

1. The parameters of Terrestrial and Tie, the parameters are far leading. From the power required by each dollar, the cost performance is also good, belongs to the new alternatives of alkaline batteries, plus the characteristics of non-leakage, belong to “Tu Hao” and “lazy people” A must battery.

2, from the entire experimental data, the alkaline battery is not large, the best double deer green energy and the worst performance of the golden world is below 50%, so the alkaline battery is in the price. Thus, the small meter and the IKEA battery rely on the price below 1 yuan, but it has a very high cost performance, the opposite of the pendant, the golden tyrants, the performance does not come, but the price is relatively high, it seems It is not worth buying.

4, nickel-hydrogen rechargeable battery, love of the electricity and Double special strength, the flying lion is not too much, the victory can be understood because of the long-term performance of the practical time, I can understand it next time, I will give you another time. The size of the nickel-hydrogen charging battery is compared, and some batteries and quantity samples are given. The more cost-effective rechargeable battery is often the best.

Section 6: Write in the last

From Jingdong Tmall and supermarket to purchase batteries, prepare and conduct experiments, spending a total of nearly two weeks, the experimental stage has not stopped day and night, on the three computers, accumulating the discharge test of 15 batteries, got a reference Sexual volume, sincere, very tired, hope worth of friends, give me some motivation to continue to create.
