Beats Studio Buds Bluetooth Real Wireless Active Noise Reduction Headset
After the Audio product of Apple brand, the Beats product line seems to be gradually marginalized, which is probably the difference between the pro son and the stepper. In June 2021, Beats Studio Buds was late, this is the first true wireless active noise reduction headset of Beats.
Software and hardware design
Beats Studio Buds Bluetooth True Wireless Active Noise Reduction Headset – With Apple Airpods Pro, Trambler Neobuds Pro, Oppo Enco X

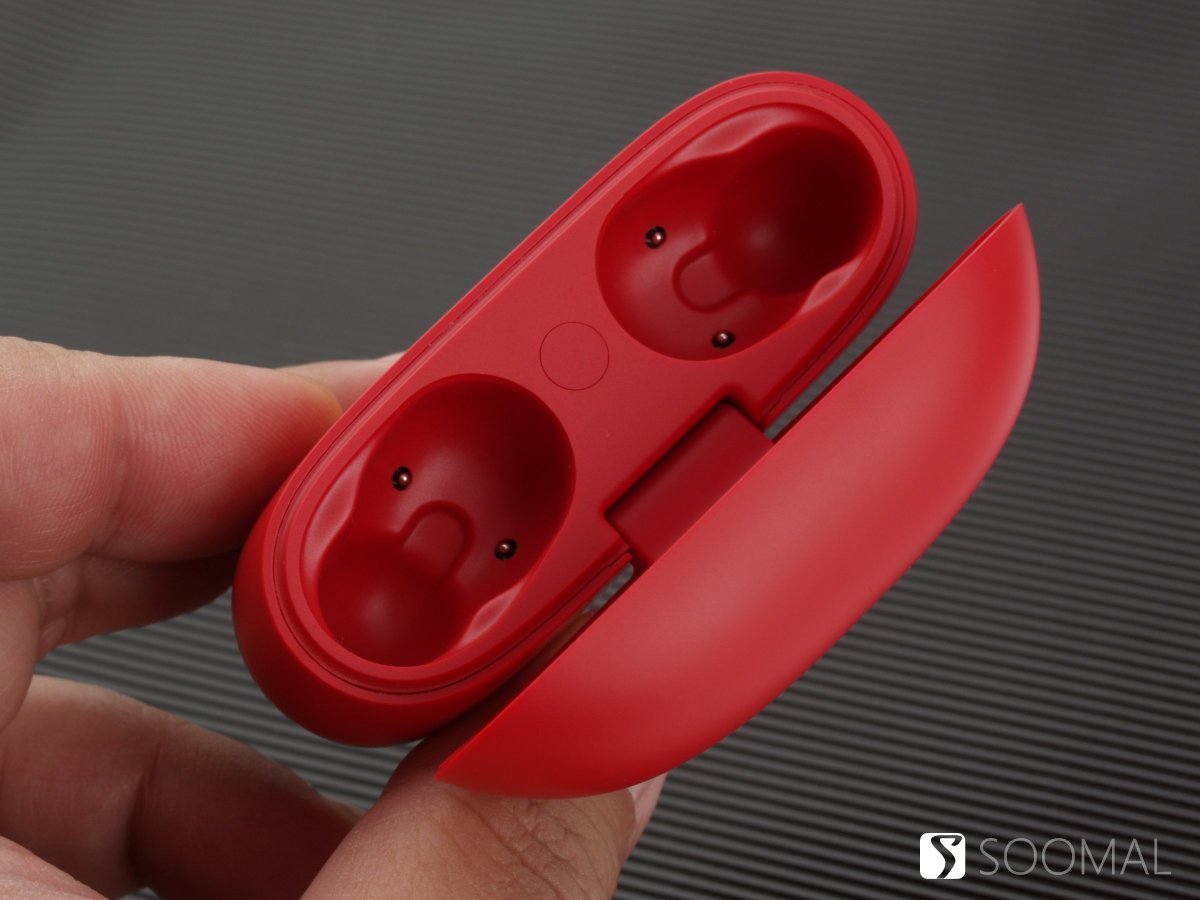

Our head of Beats Studio Buds is red, the basic shape of the battery box oval, the scrub process, the flip damping is suitable, the hinge is not obvious loose sense, the top cover is passed through magnetic force, and there will be crisp when closing the top cover. Loot. The headphones use the same material and surface treatment process as the battery case, and the outer side of the ear hossence is treated to increase the color change level. The process of the earphone has improved space, carefully observed, and the slight leakage gum can be seen.
Beats Studio Buds Bluetooth Real Wireless Active Noise Reduction Headset – With Apple Airpods Pro
The headset is based on the bean type. The ear shell is made from the circumferential to the circumference to the runway shape, form a small handle, which is convenient to take, and the uniqueness of the headphone model is added, and the recognition is increased.
The official did not mention the speaker information of Beats Studio Buds, and the main control chip did not use Apple self-research chip, but “using a fully customized acoustic platform”. After many dismantling points, it is actually the MT2821A of Liaotai, this chip is currently It is the special of Beats. What about software algorithm? Is it a change in the program of the United Kingdom? Or is AirPods algorithm transplant? In fact, this is what we most want to figure out.
The total weight of Beats Studio Buds is 59 grams, and the overall shape is flat, and it is more convenient to carry, and you can take a pocket of your trousers. The headphones are only 5 grams, and there are two total weights of 11 grams. The headphones are small, standardized with large medium and small, three sets of earplugs, and wear comfort is better, not easy to fall off, but it is easy to produce small leakage phenomena, which will affect sound quality and active noise reduction performance.
In the case of closing the active noise reduction, the headphone is full of electricity, and the battery case can be filled with zero, and the accumulated continuation is about 24 hours. When opening the active noise reduction, a single life For 5 hours. The measurement performance is basically consistent with the official data. Supports fast charge under low power. Wireless charging is not supported.
Beats Studio Buds Bluetooth True Wireless Active Noise Reduction Headset – Connection iPhone pop-up window
Beats Studio Buds Bluetooth True Wireless Active Noise Reduction Headset – Connection iPhone- Settings Interface
Beats Studio Buds Bluetooth Real Wireless Active Noise Reduction Headset – Connecting Android Phone by Beats App – Home
Beats Studio Buds Bluetooth True Wireless Active Noise Reduction Headset – Connect the Android Phone by Beats App – Other Settings
IOS 14.6 and above have native support for Beats Studio Buds, no need to install APP, connection mode is not different from Apple headset. Android users can connect Beats Studio Buds through the beats app, which is not different, but the interface is completely different from iOS. The Beats App will try to boot the user to complete the connection, but it may actually be unable to implement a variety of permissions restrictions, so it is recommended to complete the initial connection through a standard Bluetooth headset connection process, and there is no problem.
Active noise reduction and speech noise reduction
In 2021, SOOMAl tried to use new test methods to improve partial test projects, making the test results easier to present. Let’s take a look at Beats Studio Buds performance in active noise reduction.
Note: Test the resulting data is not suitable for comparison with other platforms, because of the test environment, the equipment is different.
Beats Studio BUDS Bluetooth True Wireless Active Noise Reduction Headset – Different Models Noise Comparison

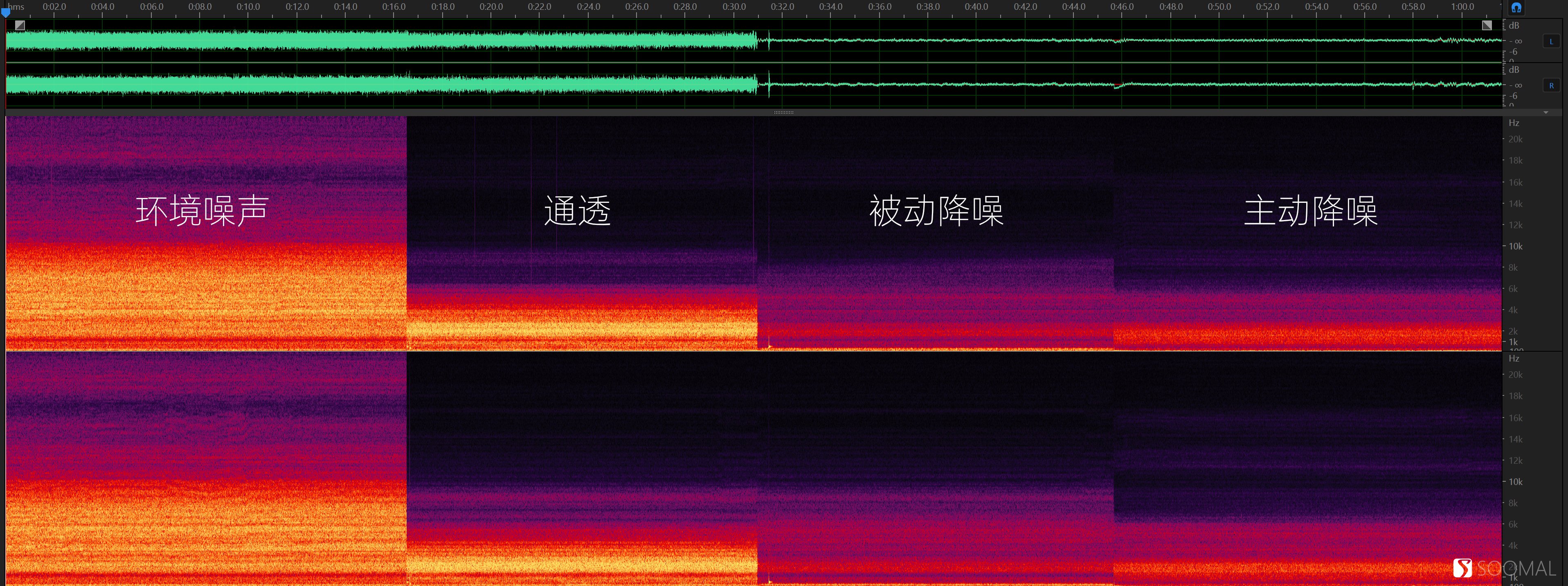

We evaluate the noise of different environments, and the most suitable noise is white noise. We have created a white noise environment of 80dB, which recorded ambient noise, transparent, passive noise reduction, and noise in active noise reduction mode.

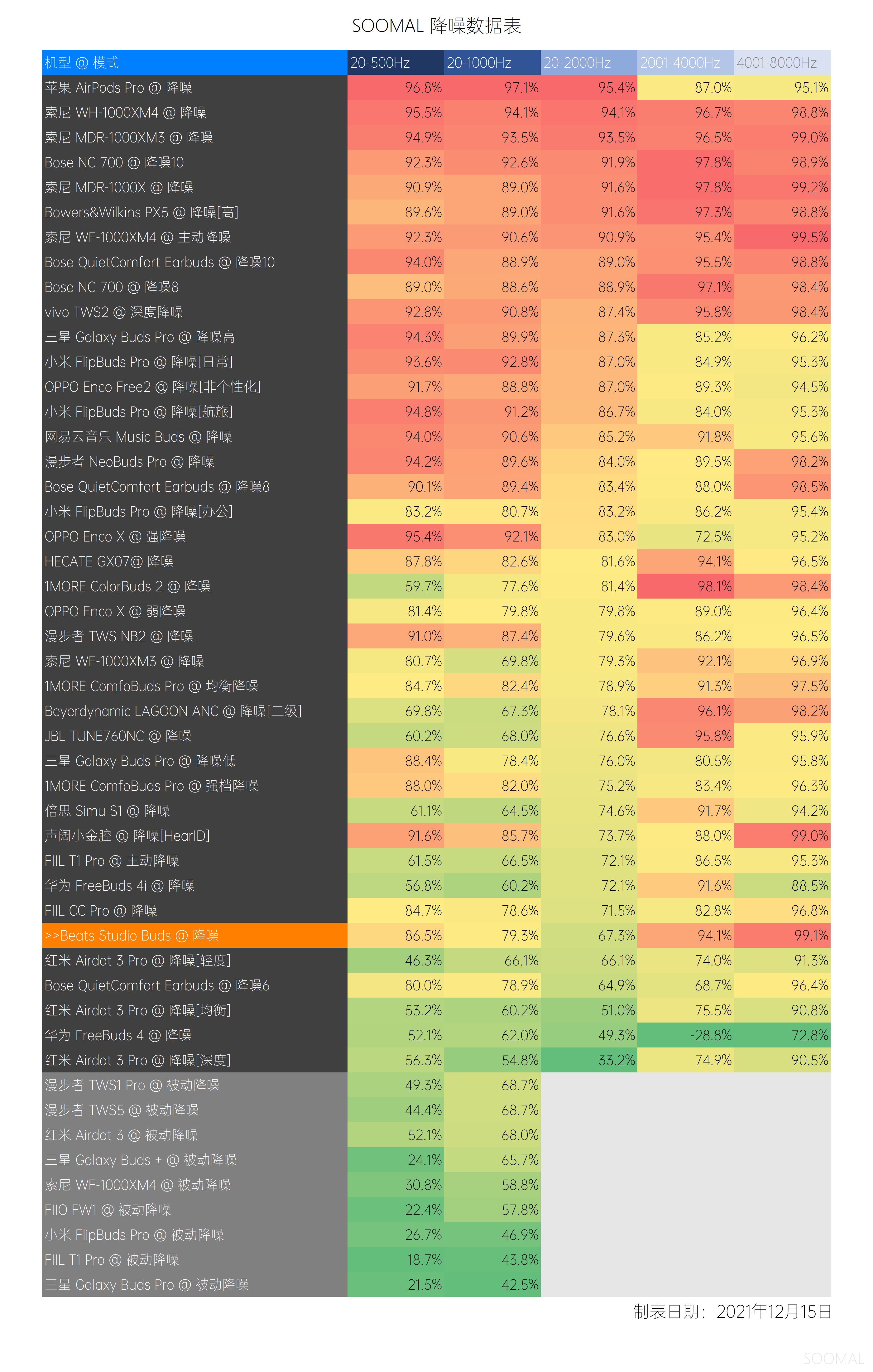

SOOMAL noise reduction data table [December 16, 2021]
The noise reduction performance of Beats Studio Buds is not ideal, far from the apple pro-AirPods Pro, which is not as strong as a large number of competitions in the same period, and the noise reduction frequency range is not enough, and the depth is not ideal. It is better to understand that AirPods Pro can be understood, but the gap is so unexpected.
Beats Studio Buds Bluetooth Real Wireless Active Noise Reduction Headset – Noise Reduction Curve
The red line in this chart represents the curve of the noise source, and the green is the noise curve in the Beats Studio Buds active mode, and the height of a lattice represents 5dB. This headset is weaker than noise reduction performance in the 1000-2000 Hz segment.
Beats Studio Buds Bluetooth True Wireless Active Noise Reduction Headset – Speech Noise Reduction
Call Noise Reduction We simulate 40DB of indoor, 80dB white noise, 75dB of vocal noisy, traffic and noise public place, etc., and real test. Beats Studio Buds takes about 2.5 seconds to sudden noise response, and the elimination of background noise is not ideal. There is a slight swallowing or cold voice, combined with context, should not cause semantic understanding.
Sound quality and summary
Beats Studio Buds did not provide additional EQ curves and no other sound is available. Supports SBC / AAC, almost compatible with all mobile phones, and the iPhone 13 Pro Max is selected as the sound source device in the test.
High frequency performance
: Beats Studio Buds high-frequency listening is biased, the sound line is not delicate, and there will be obvious sense of grain when the volume is large. Dynamic and transient expressions are medium and density. According to listening experience, it can be roughly judged that the quality of the speaker is actually not bad, and the leg should be a Bluetooth codec. With the high-quality codec, LDAC, LHDC and other high-quality codes, the AAC sound quality is insufficient. The high frequency of Beats Studio buds does not have excessive powerful modifications like some brands. In the earlier support of the AAC, the high frequency performance of Beats Studio Buds actually calculates.
Intermediate frequency performance
: Beats Studio Buds intermediate frequency imaging point is a bit virtual. There is no significant concave feeling in the intermediate-frequency hearing. The sense of hearing is high, and the human form is general. It is relatively uniform to lack details. It has a good adaptability to all kinds of people. The teeth are less, and the electronic music, rock music, and the overall frequency will be affected. Listening to the small compilers under the small and medium volume, the sense of listening is actually good.
Low frequency performance
: The low-frequency expression of this earphone does not biased the sense, but the amount of sensitive transients, the low frequency of Beats Studio Buds is not the kind of soft style, but there is a certain density and strength, rebound Faster, there will be better control when expressing fast-paced hits. In terms of detail performance, it can hear part of the low frequency vibration, which has better analytical force than most TWS headphones in the same period.
The sound quality of Beats Studio Buds is limited to AAC, which is unlikely to be outstanding, and the bottleneck of the high frequency part is particularly obvious. The overall sound style is neutralized, compared to three frequency equalization, tuning still has a certain level, which also makes the real hearing of Beats Studio Buds, more than a few hundred dollars, some of which looks down on beats manufacturers. It is really not necessarily higher than the beats tuning level.
Summarize
: Beats Studio Buds This product is inadequate. There is a phenomenon of slight leakage on workmanship, which is not like a problem that should occur under Apple’s control. The active noise reduction performance is disappointing, and we are expected to have a medium level, but there is no, and the gap between the AirPods PRO is far. The sound quality is in line with the expectations, with tuning strength, the actual hearing of Beats Studio Buds is calculated in the current TWS headset. Apple seems to be aware of the shortcomings of Beats Studio Buds, and the latest Beats Fit Pro really wireless active noise-saving headphones, this adopts Apple’s H1 chip, which should be Beats’s home products.
