Brief Introduction
Part 1
———–
Measurement basic concepts
1. Definition of measurement. range
2. Basic terms of measurement
3. The four basic principles of measurement
4. The source of measurement errors
5. Measurement benchmark system
Part 2
Introduction to precision measuring instruments
1. Classification of precision measuring instruments
2. Main measuring instrument functions, accuracy brief
3. Brief introduction of other gage functions
4. The company’s main products and applicable equipment
1. (Size) Definition and scope of measurement
1. Definition:

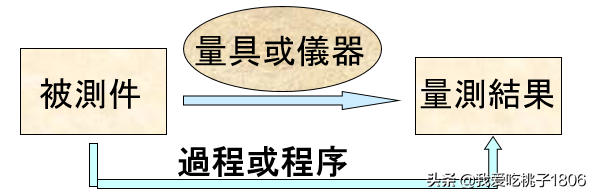

Definition: All operations performed to determine the measured value.

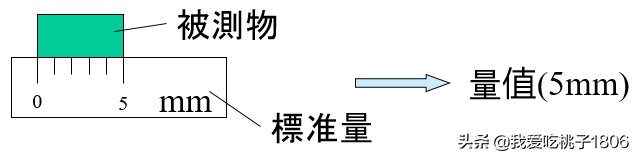

Substance: The process of comparing the measured measure with the standard quantity or unit quantity and determining the quantitative value.

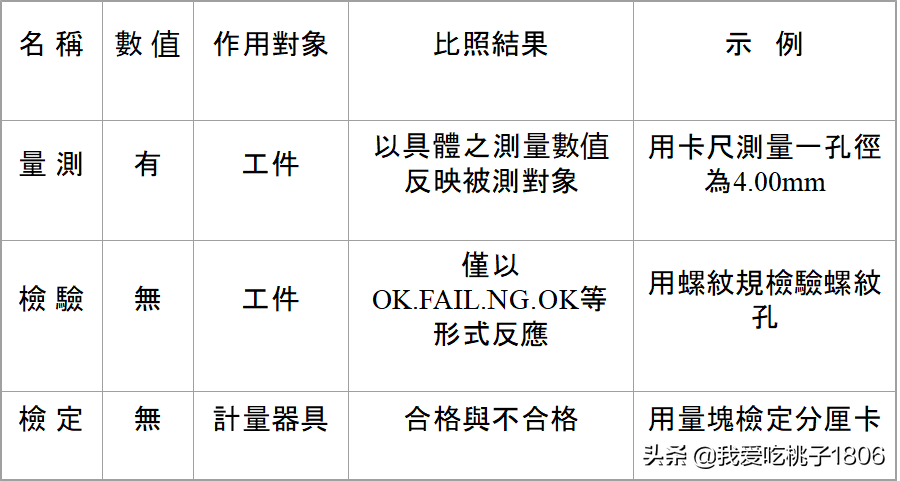

2. Measurement. 檢驗。 檢定三者區別
3. Geometric measurement range:
Length-wise
Angular aspect
Shape aspect (geometric tolerance, surface roughness)
4. Measuring instruments used in long measurement measurement:
Geometry measurement

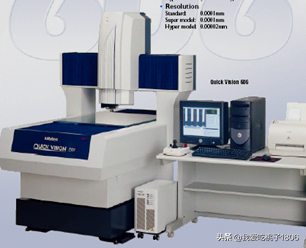

Vernier ruler. Centicard. Scales. Block gauge. Height gauge. Measurer. Three-dimensional measuring bed. Optical measuring instrument. Optical flat plate. Optical projector. Tool microscopy. Laser interferometer. Laser scanners, etc
Angle block gauge. Angle gauge. Angle ruler. Right angle gauge. Cone metrics. Protractor. Combined angle ruler. Leveler. Three-dimensional measuring bed. Optical measuring instrument (optical projector. Tool microscopy. Laser interferometer. 自動視準儀。 Laser collimator) and so on.
In terms of shape:
Surface roughness measurement tester. 輪弪莡測儀。 真圓測儀。 Optical flat plate. Optical projector. Tool microscopy. Three-dimensional measuring bed, etc.
———–
Length-wise
Angular aspect
